Openwater-88
Open-Motion
Bedside Perfusion

Noninvasive Hemodynamic Monitoring

Measure flow and volume in real-time.

Simple to apply.
Designed to integrate naturally into a clinical care workflow.
Cerebral or peripheral measurements
Hemodynamic signals
Live

Real-Time Cerebral Hemodynamics

Averaged left vs right channels — BFI with overlaid BVI, scrolling at 40 Hz.

Live
40Hz Sampling
Clinical View
BFI Left
BFI Right
BVI Left
BVI Right
BFI Left Avg
--
Right BFI Value
--
BVI Left Avg
--
BVI Right Avg
--
Research Use Only
pscos 3

Easy Sensor Placement

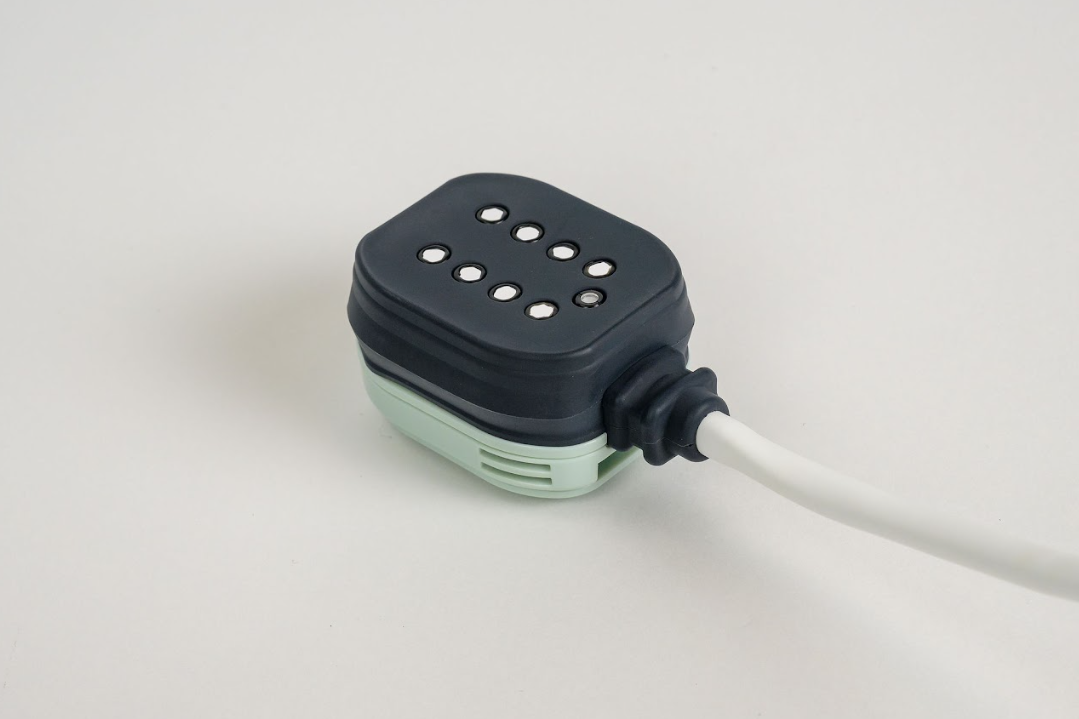

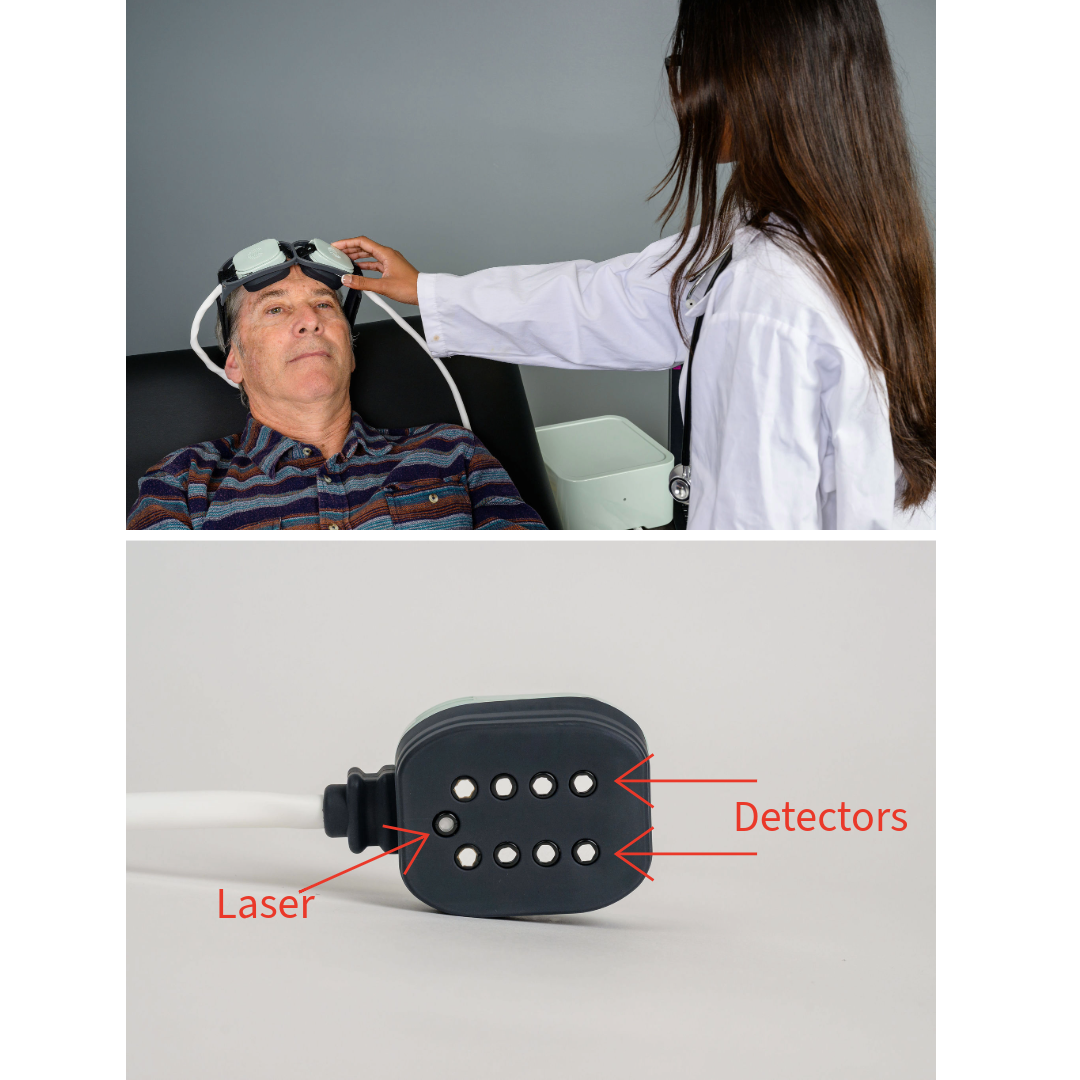

Sensor placement takes minimal time. Each sensor contains a laser and 8 CMOS cameras on each sensor module.

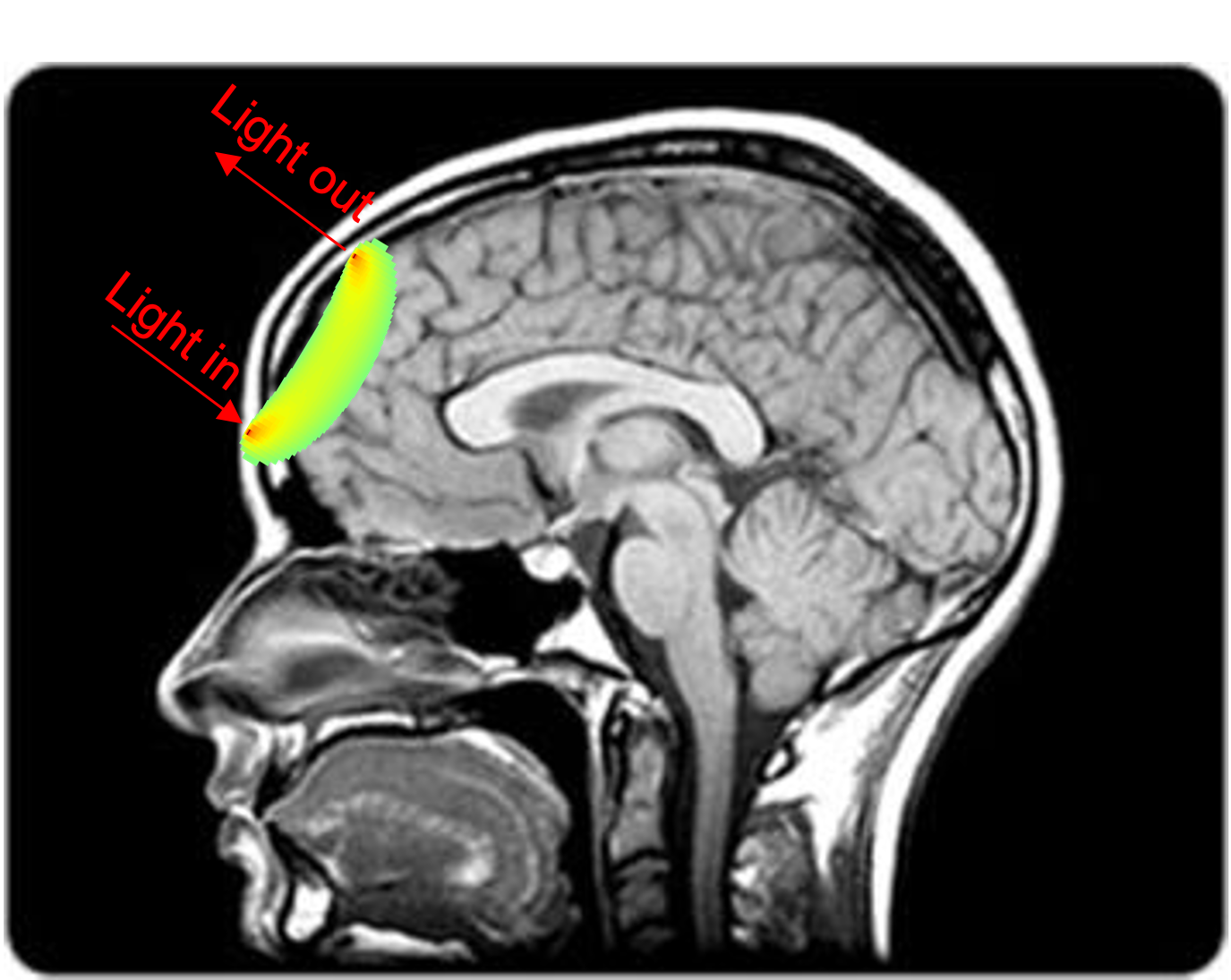

Light Diffuses

as it travels through the skull and cortex.  Open Motion measures the light that returns out of the head with the CMOS cameras on each sensor module.

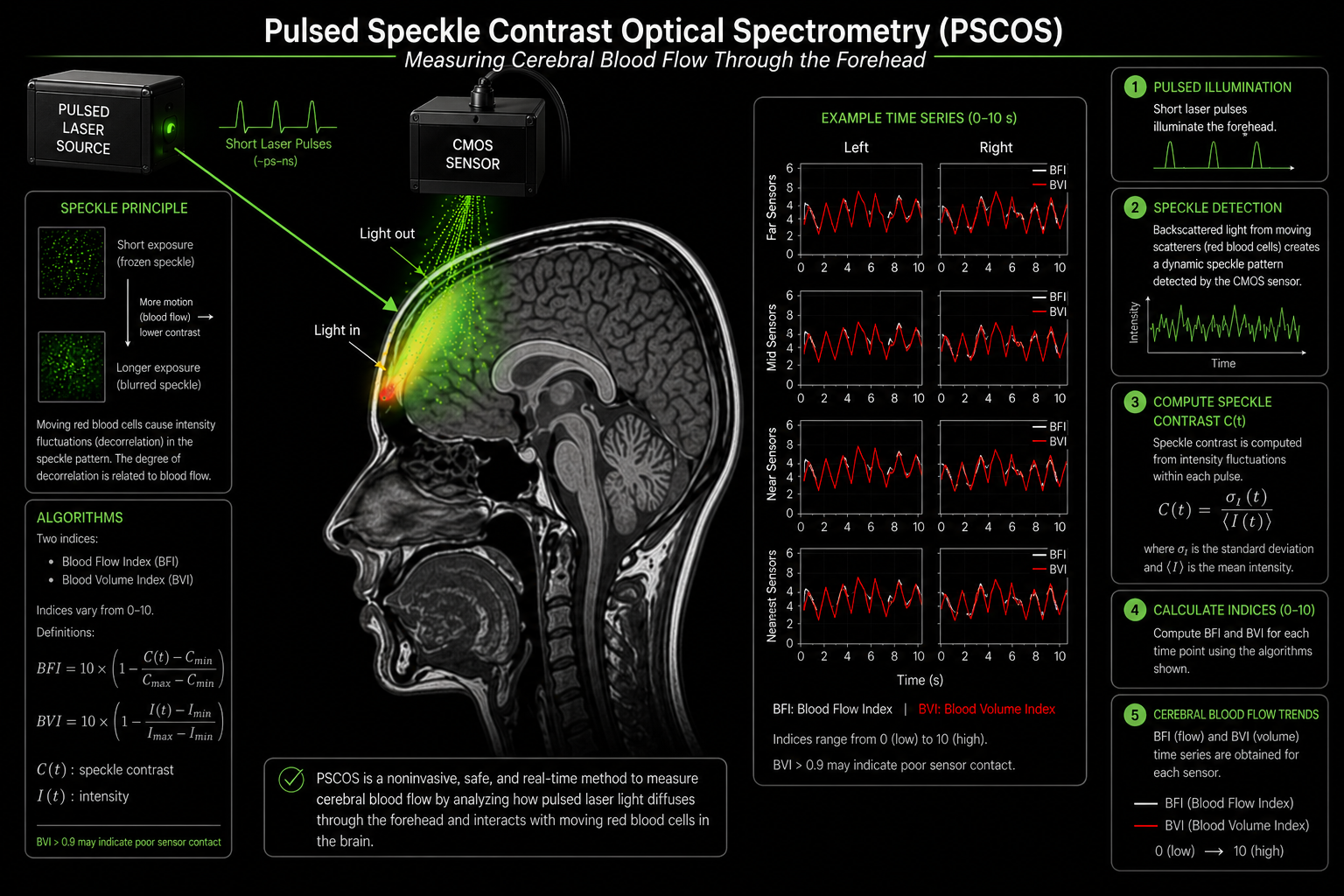

Speckle Contrast

The flow and volume are calculated by examining the speckle pattern and contrast of the image:
SCOS2
scos1
undefined-3
Openwater-28
undefined-4
undefined
Openwater-88
Platform for Software as a Medical Device
Open-Motion
$15,500

Product Description

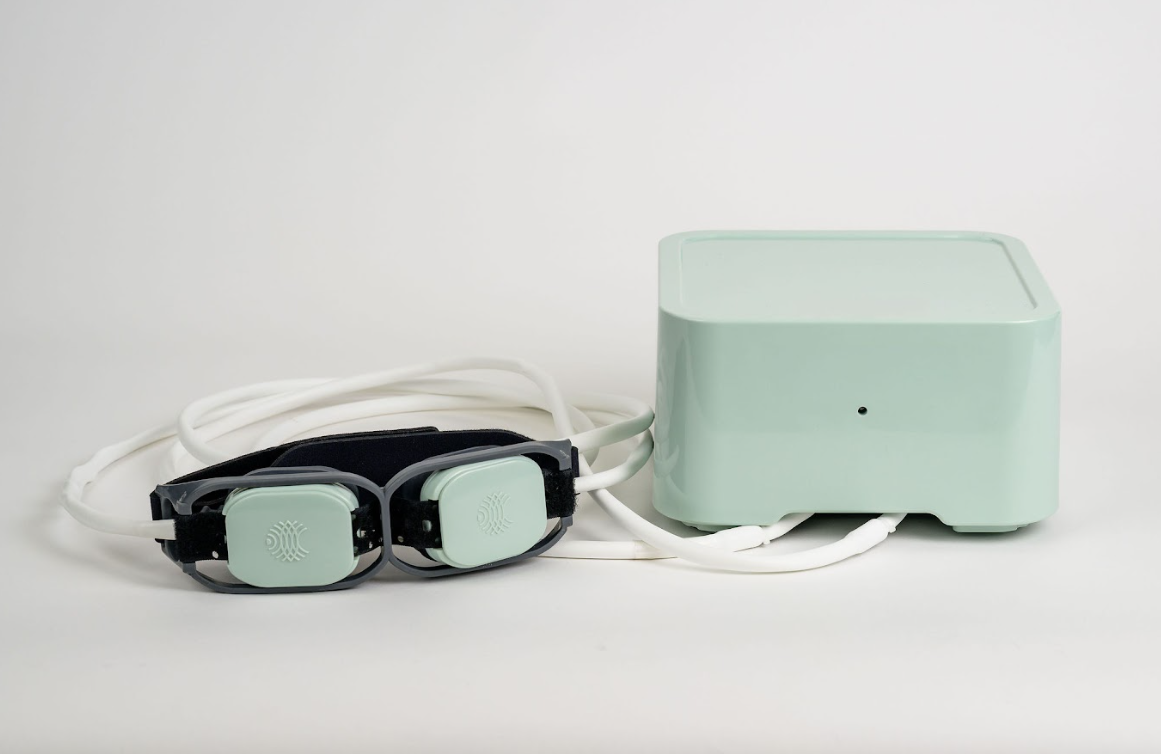

The Open-Motion hemodynamic platform usies low intensity near-infrared light to measure blood flow, blood volume, and micro-motions deep under the tissue surface. Ready to use out of the box, and also as an open source architecture that allows for customization to suit a wide range of research needs. Standardized design features ensure that clinical studies conducted with these tools can generate critical data to inform the development of future portable, low-cost medical devices.

Buy Me
